E531R Ride-on Scrubber
Balanced ability, high cost-effectiveness
E531R Product Highlights
E531R is a new designed Mini ride on floor washing machine withcompact size. Single brush of 20 inches,70L capacity both forsolution tank and recovery tank.
Patented frame-less chassis design with front drive wheel.
Light weight, small turning radius and flexible operation, it is verysuitable for small passageway and multi-floor operation. : Thewhole machine integrated waterproof touch panel design, easy tooperate; LCD display, visual equipment parameters,easy to readand fast maintenance;
3 adjustable grades design for clean water volume and drivespeed,built-in one-button Eco model,suitable for soundsensitive environment;
lnnovative double electric push rod design for brush andsqueegee system,one-key automatic lifting of brush andsqueegee system, automatic lifting when machine back off,safeand efficient;
Aluminum die-casting brush deck and squeegee assembly,automatic brush loading and unloading built-in one-button;
Large opening of recovery tank,reversible and tool - freedisassembly design for recovery tank cover,easy to clean andmaintain;

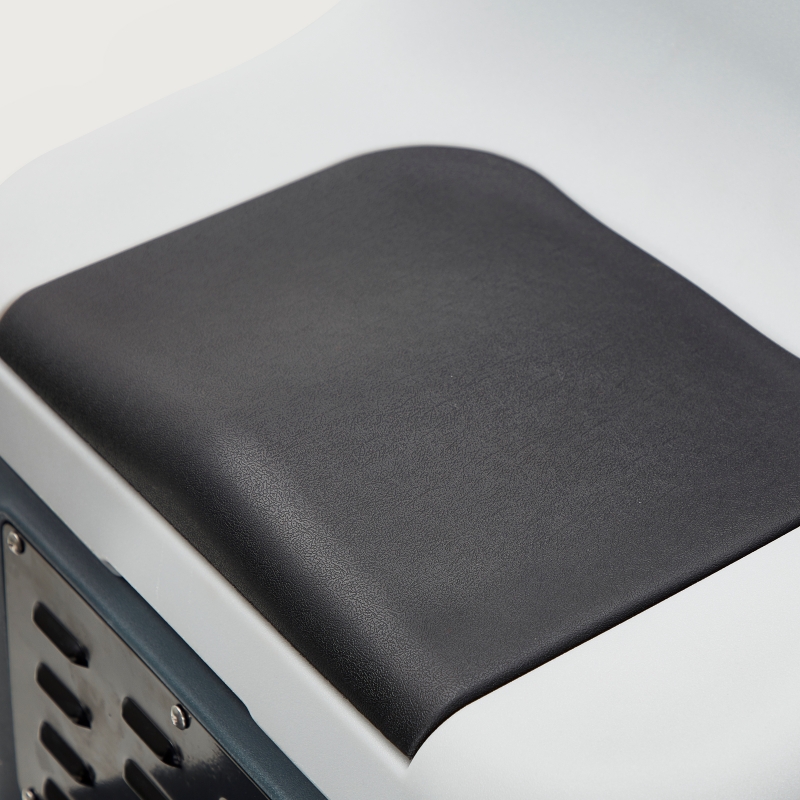

Seat with safety switch equip on the machine, when driver leavemachine will automatically stop, more safe and reliable operation.
Patented design for brush adapter, which can realize automaticloading and unloading of brush plates, longer lifetime.
Technical Spec | Unit | E531R |
Clean productivity theoretical/Actual | ㎡/h | 3450/2750 |
Scrubbing width | mm | 780 |
Washing width | mm | 530 |
Max. speed | Km/h | 6.5 |
Solution tank capacity | L | 70 |
Recovery tank capacity | L | 70 |
Voltage | V | 24 |
Brush motor rated power | W | 550 |
Vacuum motor rated power(Eco/Strong) | W | 400 |
Drive motor rated power | W | 550 |
Brush/Pad diameter | mm | 510/510 |
Brush speed | Rpm | 180 |
Brush pressure | Kg | 35 |
Vacuum power(Eco/Strong) | Kpa | 12.5 |
Sound level at 1.5m | dB(A) | <68 |
Battery compartment size(LxWxH) | mm | 420*340*260 |
Recommend battery capacity | V/Ah | 2 * 12V120Ah |
Working hours | Hour | 4-5 |
Gross weight(Include battery) | Kg | 200 |
Machine size(LxWxH) | mm | 1220 x540x1010 |
