Ride-on Scrubber - ERIClean E1060R
E1060R Ride-on Scrubber
Balanced ability, high cost-effectiveness
E1060RAdvantages
This model is a new large size front-wheel drive ride on floorwashing machine,with 200L solution tank/210L recovery tankcapacity, machine standard equip with 36V200Ah DC AGM batteryor Lithium battery.
Modularandcompact design concept to ensure that the machineparameters are large enough while still having full flexibility anddriving performance.
Low battery compartment and low recovery tank center of gravitydivision design, safe and fast operation both for battery installationand machine maintenance.

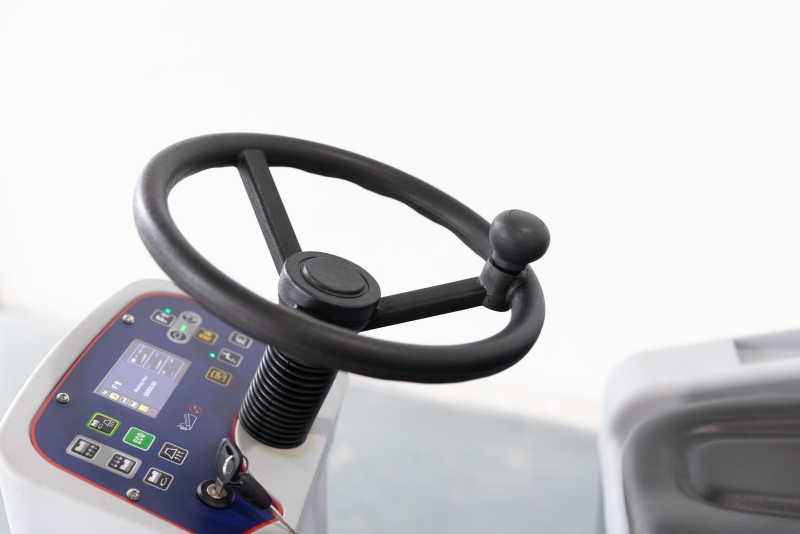

Integrated waterproof touch electronic panel design, clean waterand speed three adjustable design,easy to operate,easy tolearn;
HD LCD screen,visual equipment parameters,easy to read,simple and fast fault maintenance;
Electronic liquid level display for solution tank/recovery tankwater,intuitive and convenient display of cleaning water volume,automatic alarm and stop when the recovery tank is full;
Soft start design for both brush motor and vacuum motor, thecontroller integrates digital overcurrent,undervoltage protectionand fault detection functions
Patented design for brush adapter, which can realize automaticloading and unloading of brush plates, longer lifetime;
Eco model with lower sound and power consumption,suitablefor sound sensitive environment;
36v DC power supply system,one full battery charge canachieve 6~7 hours of continuous running
| Technical Spec | Unit | E1060R |
| Clean productivity theoretical/Actual | ㎡/h | 6800/5500 |
| Scrubbing width | mm | 1200 |
| Washing width | mm | 1060 |
| Max. speed | Km/h | 6.5 |
| Solution tank capacity | L | 200 |
| Recovery tank capacity | L | 210 |
| Voltage | V | 36 |
| Brush motor rated power | W | 550*2 |
| Vacuum motor rated power(Eco/Strong) | W | 600 |
| Drive motor rated power | W | 800 |
| Brush/Pad diameter | mm | 530/530 |
| Brush speed | Rpm | 180~200 |
| Brush pressure | Kg | 65 |
| Vacuum power(Eco/Strong) | Kpa | 17 |
| Sound level at 1.5m | dB(A) | <68 |
| Battery compartment size(LxWxH) | mm | 545*545*310 |
| Recommend battery capacity | V/Ah | 6*6V/200Ah |
| Working hours | Hour | 5.5~6.5 |
| Gross weight(Include battery) | Kg | 515 |
| Machine size(LxWxH) | mm | 1800*1150*1350 |
